HTTP Source

Creating a data generator based on an OpenAPI/Swagger document.

Scala Example | Java Example | YAML Example

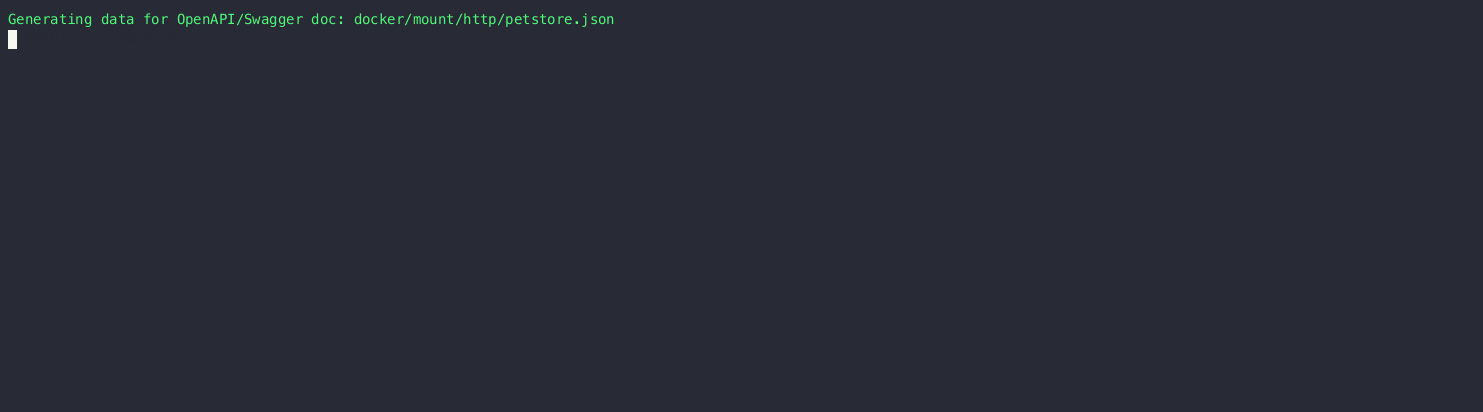

Generate HTTP requests

Requirements

  • 10 minutes
  • Git
  • Gradle
  • Docker

Get Started

First, we will clone the data-caterer repo which will already have the base project setup required.

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

Run Data Caterer UI via the 'Quick Start' found here.

HTTP Setup

We will be using the http-bin docker image to help simulate a service with HTTP endpoints.

Start it via:

cd docker
docker-compose up -d http
docker ps

Plan Setup

Create a file depending on which interface you want to use.

  • Java: src/main/java/io/github/datacatering/plan/MyAdvancedHttpJavaPlanRun.java
  • Scala: src/main/scala/io/github/datacatering/plan/MyAdvancedHttpPlanRun.scala
  • YAML: docker/data/custom/plan/my-http.yaml
import io.github.datacatering.datacaterer.java.api.PlanRun;
...

public class MyAdvancedHttpJavaPlanRun extends PlanRun {
    {
        var conf = configuration().enableGeneratePlanAndTasks(true)
            .generatedReportsFolderPath("/opt/app/data/report");
    }
}

import io.github.datacatering.datacaterer.api.PlanRun
...

class MyAdvancedHttpPlanRun extends PlanRun {
  val conf = configuration.enableGeneratePlanAndTasks(true)
    .generatedReportsFolderPath("/opt/app/data/report")
}

In docker/data/custom/plan/my-http.yaml:

name: "my_http_plan"
description: "Create account data via HTTP from OpenAPI metadata"
tasks:
  - name: "http_task"
    dataSourceName: "my_http"

In docker/data/custom/application.conf:

flags {
  enableGeneratePlanAndTasks = true
}
folders {
  generatedReportsFolderPath = "/opt/app/data/report"
}

  1. Click on Advanced Configuration towards the bottom of the screen
  2. Click on Folder and enter /tmp/data-caterer/report for Generated Reports Folder Path

We will enable generate plan and tasks so that we can read from external sources for metadata and save the reports under a folder we can easily access.

Schema

We can point the schema of a data source to a OpenAPI/Swagger document or URL. For this example, we will use the OpenAPI document found under docker/mount/http/petstore.json in the data-caterer repo. This is a simplified version of the original OpenAPI spec that can be found here.

We have kept the following endpoints to test out:

  • GET /pets - get all pets
  • POST /pets - create a new pet
  • GET /pets/{id} - get a pet by id
  • DELETE /pets/{id} - delete a pet by id
var httpTask = http("my_http")
        .fields(metadataSource().openApi("/opt/app/mount/http/petstore.json"))
        .count(count().records(2));

val httpTask = http("my_http")
  .fields(metadataSource.openApi("/opt/app/mount/http/petstore.json"))
  .count(count.records(2))

In docker/data/custom/task/http/openapi-task.yaml:

name: "http_task"
steps:
  - name: "my_petstore"
    options:
      metadataSourceType: "openapi"
      schemaLocation: "/opt/app/mount/http/petstore.json"
    count:
      records: 2

  1. Click on Connection tab at the top
    1. Click on Select data source type and select OpenAPI/Swagger
    2. Provide a Name and Schema Location pointing to where you have stored your OpenAPI specification file
    3. Click Create
  2. Click on Home tab at the top
  3. Click on Generation and tick the Auto from metadata source checkbox
    1. Click on Select metadata source and select the OpenAPI metadata source you just created

The above defines that the schema will come from an OpenAPI document found on the pathway defined. It will then generate 2 requests per request method and endpoint combination.

Run

Let's try run and see what happens.

cd ..
./run.sh
#input class MyAdvancedHttpJavaPlanRun or MyAdvancedHttpPlanRun
#after completing
docker logs -f docker-http-1

It should look something like this.

172.21.0.1 [06/Nov/2023:01:06:53 +0000] GET /anything/pets?tags%3DeXQxFUHVja+EYm%26limit%3D33895 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:06:53 +0000] GET /anything/pets?tags%3DSXaFvAqwYGF%26tags%3DjdNRFONA%26limit%3D40975 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:06:56 +0000] POST /anything/pets HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:06:56 +0000] POST /anything/pets HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:07:00 +0000] GET /anything/pets/kbH8D7rDuq HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:07:00 +0000] GET /anything/pets/REsa0tnu7dvekGDvxR HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:07:03 +0000] DELETE /anything/pets/EqrOr1dHFfKUjWb HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:07:03 +0000] DELETE /anything/pets/7WG7JHPaNxP HTTP/1.1 200 Host: host.docker.internal}

Looks like we have some data now. But we can do better and add some enhancements to it.

Foreign keys

The four different requests that get sent could have the same id passed across to each of them if we define a foreign key relationship. This will make it more realistic to a real life scenario as pets get created and queried by a particular id value. We note that the id value is first used when a pet is created in the body of the POST request. Then it gets used as a path parameter in the DELETE and GET requests.

To link them all together, we must follow a particular pattern when referring to request body, query parameter or path parameter fields.

HTTP Type Field Prefix Example
Request Body body body.id
Path Parameter pathParam pathParamid
Query Parameter queryParam queryParamid
Header header headerContent_Type

Also note, that when creating a foreign field definition for a HTTP data source, to refer to a specific endpoint and method, we have to follow the pattern of {http method}{http path}. For example, POST/pets. Let's apply this knowledge to link all the id values together.

var myPlan = plan().addForeignKeyRelationship(
        foreignField("my_http", "POST/pets", "body.id"),     //source of foreign key value
        foreignField("my_http", "DELETE/pets/{id}", "pathParamid"),
        foreignField("my_http", "GET/pets/{id}", "pathParamid")
);

execute(myPlan, conf, httpTask);

val myPlan = plan.addForeignKeyRelationship(
  foreignField("my_http", "POST/pets", "body.id"),     //source of foreign key value
  foreignField("my_http", "DELETE/pets/{id}", "pathParamid"),
  foreignField("my_http", "GET/pets/{id}", "pathParamid")
)

execute(myPlan, conf, httpTask)

In docker/data/custom/plan/my-http.yaml:

name: "my_http_plan"
description: "Create account data via HTTP from OpenAPI metadata"
tasks:
  - name: "http_task"
    dataSourceName: "my_http"

sinkOptions:
  foreignKeys:
    - source:
        dataSource: "my_http"
        step: "POST/pets"
        fields: ["body.id"]
      generate:
        - dataSource: "my_http"
          step: "DELETE/pets/{id}"
          fields: ["pathParamid"]
        - dataSource: "my_http"
          step: "GET/pets/{id}"
          fields: ["pathParamid"]

Generate relationship in UI

Let's test it out by running it again

./run.sh
#input class MyAdvancedHttpJavaPlanRun or MyAdvancedHttpPlanRun
docker logs -f docker-http-1

172.21.0.1 [06/Nov/2023:01:33:59 +0000] GET /anything/pets?limit%3D45971 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:34:00 +0000] GET /anything/pets?limit%3D62015 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:34:04 +0000] POST /anything/pets HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:34:05 +0000] POST /anything/pets HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:34:09 +0000] DELETE /anything/pets/5e HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:34:09 +0000] DELETE /anything/pets/IHPm2 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:34:14 +0000] GET /anything/pets/IHPm2 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:34:14 +0000] GET /anything/pets/5e HTTP/1.1 200 Host: host.docker.internal}

Now we have the same id values being produced across the POST, DELETE and GET requests! What if we knew that the id values should follow a particular pattern?

Custom metadata

So given that we have defined a foreign key where the root of the foreign key values is from the POST request, we can update the metadata of the id field for the POST request and it will proliferate to the other endpoints as well. Given the id field is a nested field as noted in the foreign key, we can alter its metadata via the following:

var httpTask = http("my_http")
        .fields(metadataSource().openApi("/opt/app/mount/http/petstore.json"))
        .fields(field().name("body").fields(field().name("id").regex("ID[0-9]{8}")))
        .count(count().records(2));

val httpTask = http("my_http")
  .fields(metadataSource.openApi("/opt/app/mount/http/petstore.json"))
  .fields(field.name("body").fields(field.name("id").regex("ID[0-9]{8}")))
  .count(count.records(2))

In docker/data/custom/task/http/openapi-task.yaml:

name: "http_task"
steps:
  - name: "my_petstore"
    options:
      metadataSourceType: "openapi"
      schemaLocation: "/opt/app/mount/http/petstore.json"
    count:
      records: 2
    fields:
      - name: "body"
        fields:
          - name: "id"
            options:
              regex: "ID[0-9]{8}"

  1. Click on Generation and tick the Manual checkbox
  2. Click on + Field
    1. Add name as body
    2. Click on Select data type and select struct
    3. Click on + Field
    4. Add name as id
    5. Click on Select data type and select string
    6. Click + next to data type and select Regex. Then enter ID[0-9]{8}

We first get the field body, then get the nested schema and get the field id and add metadata stating that id should follow the patter ID[0-9]{8}.

Let's try run again, and hopefully we should see some proper ID values.

./run.sh
#input class MyAdvancedHttpJavaPlanRun or MyAdvancedHttpPlanRun
docker logs -f docker-http-1

172.21.0.1 [06/Nov/2023:01:45:45 +0000] GET /anything/pets?tags%3D10fWnNoDz%26limit%3D66804 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:45:46 +0000] GET /anything/pets?tags%3DhyO6mI8LZUUpS HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:45:50 +0000] POST /anything/pets HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:45:51 +0000] POST /anything/pets HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:45:52 +0000] DELETE /anything/pets/ID55185420 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:45:52 +0000] DELETE /anything/pets/ID20618951 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:45:57 +0000] GET /anything/pets/ID55185420 HTTP/1.1 200 Host: host.docker.internal}
172.21.0.1 [06/Nov/2023:01:45:57 +0000] GET /anything/pets/ID20618951 HTTP/1.1 200 Host: host.docker.internal}

Great! Now we have replicated a production-like flow of HTTP requests.

No OpenAPI/Swagger

You may want to create your own HTTP requests that are hand-crafted with your requirements. Below is how we can achieve this with some helper methods.

HTTP URL

There are 4 different parts of creating an HTTP URL. At minimum, you need a base URL and HTTP method. - Base URL - HTTP method (i.e. GET, POST, etc.) - Path parameters - Query parameters

var httpTask = http("my_http")
        .fields(
                field().httpUrl(
                        "http://host.docker.internal:80/anything/pets/{id}",    //url
                        HttpMethodEnum.GET(),                                       //method
                        List.of(field().name("id")),                                //path parameter
                        List.of(field().name("limit").type(IntegerType.instance()).min(1).max(10))  //query parameter
                )
        )
        .count(count().records(2));

val httpTask = http("my_http")
  .fields(
    field.httpUrl(
      "http://host.docker.internal:80/anything/pets/{id}",  //url
      HttpMethodEnum.GET,                                   //method
      List(field.name("id")),                               //path parameter
      List(field.name("limit").`type`(IntegerType).min(1).max(10))  //query parameter
    ): _*
  )
  .count(count.records(2))

In docker/data/custom/task/http/http-task.yaml:

name: "http_task"
steps:
  - name: "my_petstore"
    count:
      records: 2
    fields:
      - name: "httpUrl"
        fields:
          - name: "url"
            static: "http://localhost:80/anything/{id}"
          - name: "method"
            static: "GET"
          - name: "pathParam"
            fields:
              - name: "id"
          - name: "queryParam"
            fields:
              - name: "limit"
                type: "integer"
                options:
                  min: 1
                  max: 10

  1. Click on Generation and tick the Manual checkbox
  2. Click on + Field
    1. Add name as httpUrl
    2. Click on Select data type and select struct
    3. Click on + Field under httpUrl
    4. Add name as url
    5. Click on Select data type and select string
    6. Click Static and enter http://localhost:80/anything/{id}
    7. Click on + Field and add name as method
    8. Click on Select data type and select string
    9. Click + next to data type and select Static. Then enter GET
    10. Click on + Field and add name as pathParam
    11. Click on Select data type and select struct
    12. Click on + Field under pathParam and add name as id
    13. Click on + Field and add name as queryParam
    14. Click on Select data type and select struct
    15. Click on + Field under queryParam and add name as limit
    16. Click + next to data type and select Min and enter 1. Similarly, select Max and enter 10

HTTP Headers

HTTP headers can also be generated and have values that are based on the request payload.

var httpTask = http("my_http")
        .fields(
                field().httpHeader("Content-Type").staticValue("application/json"),
                field().httpHeader("Content-Length"), //automatically calculated for you
                field().httpHeader("X-Account-Id").sql("body.account_id")
        )
        ...

val httpTask = http("my_http")
  .fields(
    field.httpHeader("Content-Type").static("application/json"),
    field.httpHeader("Content-Length"), //automatically calculated for you
    field.httpHeader("X-Account-Id").sql("body.account_id")
  )
  ...

In docker/data/custom/task/http/http-task.yaml:

name: "http_task"
steps:
  - name: "my_petstore"
    count:
      records: 2
    fields:
      - name: "httpHeaders"
        fields:
          - name: "Content-Type"
            static: "application/json"
          - name: "Content-Length"
          - name: "X-Account-Id"
            options:
              sql: "body.account_id"

  1. Click on + Field
  2. Add name as httpHeader
  3. Click on Select data type and select struct
  4. Click on + Field under httpHeader
  5. Add name as Content-Type
  6. Click on Select data type and select string
  7. Click Static and enter application/json
  8. Click on + Field and add name as Content-Length
  9. Click on Select data type and select string
  10. Click on + Field and add name as X-Account-Id
  11. Click on Select data type and select string
  12. Click + next to data type and select Sql and enter body.account_id

HTTP Body

HTTP body can be currently formed as a JSON structure that is generated from the metadata you define.

var httpTask = http("my_http")
        .fields(
                field().httpBody(
                        field().name("account_id").regex("ACC[0-9]{8}"),
                        field().name("details").fields(
                                field().name("name").expression("#{Name.name}"),
                                field().name("age").type(IntegerType.instance()).max(100)
                        )
                )
        )
        ...

val httpTask = http("my_http")
  .fields(
    field.httpBody(
      field.name("account_id").regex("ACC[0-9]{8}"),
      field.name("details").fields(
        field.name("name").expression("#{Name.name}"),
        field.name("age").`type`(IntegerType).max(100)
      )
    )
  )
  ...

In docker/data/custom/task/http/http-task.yaml:

name: "http_task"
steps:
  - name: "my_petstore"
    count:
      records: 2
    fields:
      - name: "httpBody"
        fields:
          - name: "account_id"
            options:
              regex: "ACC[0-9]{8}"
          - name: "details"
            fields:
              - name: "name"
                options:
                  expression: "#{Name.name}"
              - name: "age"
                type: Integer
                options:
                  max: 100

  1. Click on + Field
  2. Add name as httpBody
  3. Click on Select data type and select struct
  4. Click on + Field under httpBody
  5. Add name as account_id
  6. Click on Select data type and select string
  7. Click + next to data type and select Regex and enter ACC[0-9]{8}
  8. Click on + Field and add name as details
  9. Click on Select data type and select struct
  10. Click on + Field under details
  11. Add name as name
  12. Click on Select data type and select string
  13. Click + next to data type and select Faker expression and enter #{Name.name}
  14. Click on + Field under details
  15. Add name as age
  16. Click on Select data type and select integer
  17. Click + next to data type and select Max and enter 100

Ordering

If you wanted to change the ordering of the requests, you can alter the order from within the OpenAPI/Swagger document. This is particularly useful when you want to simulate the same flow that users would take when utilising your application (i.e. create account, query account, update account).

Rows per second

By default, Data Caterer will push requests per method and endpoint at a rate of around 5 requests per second. If you want to alter this value, you can do so via the below configuration. The lowest supported requests per second is 1.

import io.github.datacatering.datacaterer.api.model.Constants;

...
var httpTask = http("my_http", Map.of(Constants.ROWS_PER_SECOND(), "1"))
        ...

import io.github.datacatering.datacaterer.api.model.Constants.ROWS_PER_SECOND

...
val httpTask = http("my_http", options = Map(ROWS_PER_SECOND -> "1"))
  ...

In docker/data/custom/task/http/openapi-task.yaml:

name: "http_task"
steps:
  - name: "my_petstore"
    options:
      metadataSourceType: "openapi"
      schemaLocation: "/opt/app/mount/http/petstore.json"
      rowsPerSecond: "1"
    ...

Validation

Once you have generated HTTP requests, you may also want to validate the responses to ensure your service is responding as expected.

The following fields are made available to you to validate against:

Field Inner Field Data Type Example
request method String GET
request url String http://localhost:8080/my/path
request headers Map[String, String] Content-Length -> 200
request body String my-body
request startTime Long 1733408207499
response contentType String application/json
response headers Map[String, String] Content-Length -> 200
response body String my-body
response statusCode Int 200
response statusText String OK
response timeTakenMs Long 120
var httpTask = http("my_http", Map.of(Constants.VALIDATION_IDENTIFIER(), "POST/pets"))
        .fields(
                ...
        )
        .validations(
                validation().field("request.method").isEqual("POST"),
                validation().field("response.statusCode").isEqual(200),
                validation().field("response.timeTakenMs").lessThan(100),
                validation().field("response.headers.Content-Length").greaterThan(0),
                validation().field("response.headers.Content-Type").isEqual("application/json")
        )

val httpTask = http("my_http", options = Map(VALIDATION_IDENTIFIER -> "POST/pets"))
  .fields(
    ...
  )
  .validations(
    validation.field("request.method").isEqual("POST"),
    validation.field("response.statusCode").isEqual(200),
    validation.field("response.timeTakenMs").lessThan(100),
    validation.field("response.headers.Content-Length").greaterThan(0),
    validation.field("response.headers.Content-Type").isEqual("application/json"),
  )

In docker/data/custom/validation/http/http-validation.yaml:

name: "http_checks"
dataSources:
  my_http:
    - options:
        validationIdentifier: "POST/pets"
      validations:
        - expr: "request.method == 'POST'"
        - expr: "response.statusCode == 200"
        - expr: "response.timeTakenMs < 100"
        - expr: "response.headers.Content-Length > 0"
        - expr: "response.headers.Content-Type == 'application/json'"

  1. Open Validation
  2. Click on Manual checkbox
  3. Click on + Validation button and click Select validation type and select Field
  4. Enter request.method in the Field text box
  5. Click on + next to Operator and select Equal
  6. Enter POST in the Equal text box
  7. Continue adding validations for response.statusCode, response.timeTakenMs, response.headers.Content-Length and response.headers.Content-Type

Query parameter styles

You can generate query parameters with different serialization styles (per OpenAPI specification).

Example

var httpTask = http("my_http")
    .fields(
        field().httpUrl(
            "http://host.docker.internal:80/anything/pets",
            HttpMethodEnum.GET(),
            List.of(),
            List.of(
                field().httpQueryParam("tags", ArrayType.instance(), HttpQueryParameterStyleEnum.FORM(), false),
                field().httpQueryParam("limit")
            )
        )
    );

val httpTask = http("my_http")
  .fields(
    field.httpUrl(
      "http://host.docker.internal:80/anything/pets",
      HttpMethodEnum.GET,
      List(),
      List(
        field.httpQueryParam("tags", ArrayType, HttpQueryParameterStyleEnum.FORM, explode = false),
        field.httpQueryParam("limit")
      )
    ): _*
  )

name: "http_query_params_task"
steps:
  - name: "query_pets"
    type: "http"
    options:
      url: "http://host.docker.internal:80/anything/pets"
      method: "GET"
    fields:
      - name: "tags"
        type: "array<string>"
        options:
          isQueryParam: true
          queryParamStyle: "form"
          queryParamExplode: false
      - name: "limit"
        type: "integer"
        options:
          isQueryParam: true

If you want to validate data from an HTTP source, follow the validation documentation found here to help guide you.

Check out the full example under HttpPlanRun in the example repo.
