Great Expectations Source

Creating a data generator for a JSON file and validating the data based on expectations in Great Expectations.

Scala Example

Requirements

• 10 minutes
• Git
• Gradle
• Docker

Get Started

First, we will clone the data-caterer repo which will already have the base project setup required.

JavaScalaYAMLUI

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

Run Data Caterer UI via the 'Quick Start' found here.

Great Expectations Setup

A sample expectations file that will be used for this guide can be found here.

If you want to use your own expectations file, simply add it into the docker/mount/ge folder path and follow the below steps.

Plan Setup

Create a file depending on which interface you want to use.

• Java: src/main/java/io/github/datacatering/plan/MyAdvancedGreatExpectationsJavaPlanRun.java
• Scala: src/main/scala/io/github/datacatering/plan/MyAdvancedGreatExpectationsPlanRun.scala
• YAML: docker/data/custom/plan/my-great-expectations.yaml

JavaScalaYAMLUI

import io.github.datacatering.datacaterer.java.api.PlanRun;
...

public class MyAdvancedGreatExpectationsJavaPlanRun extends PlanRun {
    {
        var conf = configuration().enableGenerateValidations(true)
            .generatedReportsFolderPath("/opt/app/data/report");
    }
}

import io.github.datacatering.datacaterer.api.PlanRun
...

class MyAdvancedGreatExpectationsPlanRun extends PlanRun {
  val conf = configuration.enableGenerateValidations(true)
    .generatedReportsFolderPath("/opt/app/data/report")
}

In docker/data/custom/plan/my-great-expectations.yaml:

name: "my_great_expectations_plan"
description: "Create account data in JSON format and validate via Great Expectations metadata"
tasks:
  - name: "json_task"
    dataSourceName: "my_json"

In docker/data/custom/application.conf:

flags {
  enableGenerateValidations = true
}
folders {
  generatedReportsFolderPath = "/opt/app/data/report"
}

1. Click on Advanced Configuration towards the bottom of the screen
2. Click on Flag and click on Generate Validations
3. Click on Folder and enter /tmp/data-caterer/report for Generated Reports Folder Path

We will enable generate validations so that we can read from external sources for validations and save the reports under a folder we can easily access.

Great Expectations

To point to a specific expectations file, we create a metadata source as seen below.

JavaScalaYAMLUI

var greatExpectationsSource = metadataSource().greatExpectations("/opt/app/mount/ge/taxi-expectations.json");

val greatExpectationsSource = metadataSource.greatExpectations("/opt/app/mount/ge/taxi-expectations.json")

In docker/data/custom/task/file/json/json-great-expectations-task.yaml:

name: "json_task"
steps:
  - name: "accounts"
    type: "json"
    options:
      path: "/opt/app/data/json"
      metadataSourceType: "greatExpectations"
      expectationsFile: "/opt/app/mount/ge/taxi-expectations.json"

1. Click on Connection tab at the top
2. Select Great Expectations as the data source and enter my-great-expectations
3. Copy this file into /tmp/ge/taxi-expectations.json
4. Enter /tmp/ge/taxi-expectations.json as the Expectations File

Schema & Validation

To simulate a scenario where we have an existing data source, we will manually create a sample dataset.

At the end, we point to our expectations metadata source to use those validations to validate the data.

JavaScalaYAMLUI

var jsonTask = json("my_json", "/opt/app/data/json", Map.of("saveMode", "overwrite"))
        .fields(
                field().name("vendor_id"),
                field().name("pickup_datetime").type(TimestampType.instance()),
                field().name("dropoff_datetime").type(TimestampType.instance()),
                field().name("passenger_count").type(IntegerType.instance()),
                field().name("trip_distance").type(DoubleType.instance()),
                field().name("rate_code_id"),
                field().name("store_and_fwd_flag"),
                field().name("pickup_location_id"),
                field().name("dropoff_location_id"),
                field().name("payment_type"),
                field().name("fare_amount").type(DoubleType.instance()),
                field().name("extra"),
                field().name("mta_tax").type(DoubleType.instance()),
                field().name("tip_amount").type(DoubleType.instance()),
                field().name("tolls_amount").type(DoubleType.instance()),
                field().name("improvement_surcharge").type(DoubleType.instance()),
                field().name("total_amount").type(DoubleType.instance()),
                field().name("congestion_surcharge").type(DoubleType.instance())
        )
        .validations(greatExpectations);

val jsonTask = json("my_json", "/opt/app/data/taxi_json", Map("saveMode" -> "overwrite"))
  .fields(
    field.name("vendor_id"),
    field.name("pickup_datetime").`type`(TimestampType),
    field.name("dropoff_datetime").`type`(TimestampType),
    field.name("passenger_count").`type`(IntegerType),
    field.name("trip_distance").`type`(DoubleType),
    field.name("rate_code_id"),
    field.name("store_and_fwd_flag"),
    field.name("pickup_location_id"),
    field.name("dropoff_location_id"),
    field.name("payment_type"),
    field.name("fare_amount").`type`(DoubleType),
    field.name("extra"),
    field.name("mta_tax").`type`(DoubleType),
    field.name("tip_amount").`type`(DoubleType),
    field.name("tolls_amount").`type`(DoubleType),
    field.name("improvement_surcharge").`type`(DoubleType),
    field.name("total_amount").`type`(DoubleType),
    field.name("congestion_surcharge").`type`(DoubleType),
  )
  .validations(greatExpectationsSource)

In docker/data/custom/task/json/json-great-expectations-task.yaml:

name: "json_task"
steps:
  - name: "accounts"
    type: "json"
    options:
      path: "/opt/app/data/json"
      metadataSourceType: "greatExpectations"
      expectationsFile: "/opt/app/mount/ge/taxi-expectations.json"
    fields:
      - name: "vendor_id"
      - name: "pickup_datetime"
        type: "timestamp"
      - name: "dropoff_datetime"
        type: "timestamp"
      - name: "passenger_count"
        type: "integer"
      - name: "trip_distance"
        type: "double"
      - name: "rate_code_id"
      - name: "store_and_fwd_flag"
      - name: "pickup_location_id"
      - name: "dropoff_location_id"
      - name: "payment_type"
      - name: "fare_amount"
        type: "double"
      - name: "extra"
      - name: "mta_tax"
        type: "double"
      - name: "tip_amount"
        type: "double"
      - name: "tolls_amount"
        type: "double"
      - name: "improvement_surcharge"
        type: "double"
      - name: "total_amount"
        type: "double"
      - name: "congestion_surcharge"
        type: "double"

1. Click on Generation and tick the Manual checkbox
2. Click on + Field
3. Add name as vendor_id
4. Click on Select data type and select string
5. Continue with other fields and data types

Run

Let's try run and see what happens.

cd ..
./run.sh
#input class MyAdvancedGreatExpectationsJavaPlanRun or MyAdvancedGreatExpectationsPlanRun
#after completing
#open docker/sample/report/index.html

JavaScalaYAMLUI

./run.sh MyAdvancedGreatExpectationsJavaPlanRun
#open docker/sample/report/index.html

./run.sh MyAdvancedGreatExpectationsPlanRun
#open docker/sample/report/index.html

./run.sh my-great-expectations.yaml
#open docker/sample/report/index.html

1. Click the button Execute at the top
2. Progress updates will show in the bottom right corner
3. Click on History at the top
4. Check for your plan name and see the result summary
5. Click on Report on the right side to see more details of what was executed

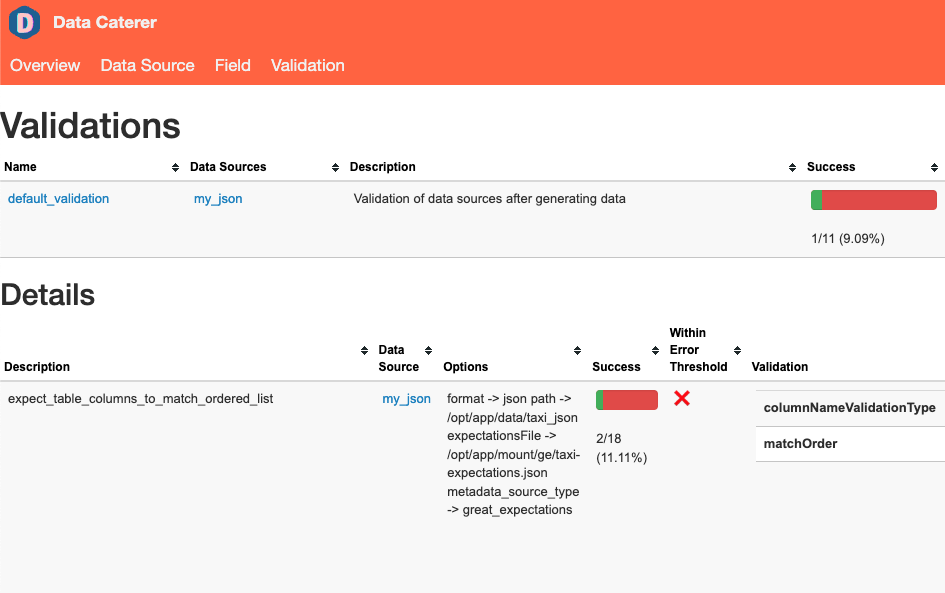

It should look something like this.

So we were just able to validate our data source from reading a Great Expectations file. Simple! This gives us an easy way to integrate with existing data validations, but now we can relate that to generated data in test environments.

But we still may want to add on our own validations outside what is in Great Expectations.

Custom validation

We found that we should also check that the trip_distance has to be less than 500 but was not included in Great Expectations. No worries, we can simply add it in here alongside the existing expectations.

JavaScalaYAMLUI

var jsonTask = json("my_json", "/opt/app/data/json", Map.of("saveMode", "overwrite"))
        .fields(
            ...
        ))
        .validations(greatExpectations)
        .validations(validation().field("trip_distance").lessThan(500));

val jsonTask = json("my_json", "/opt/app/data/json", Map("saveMode" -> "overwrite"))
  .fields(
    ...
  ))
  .validations(greatExpectationsSource)
  .validations(validation.field("trip_distance").lessThan(500))

In docker/data/custom/validation/great-expectations-validation.yaml:

---
name: "ge_checks"
dataSources:
  my_json:
    - validations:
        - expr: "trip_distance < 500"
        - field: "trip_distance"  #OR
          validation:
            - type: "lessThan"
              value: 500

1. Under Validation, click on Manual
2. Click on + Validation and go to Select validation type... as Field
3. Set Field to trip_distance
4. Click on + next to the field name and select Less Than
5. Enter 500 as the value

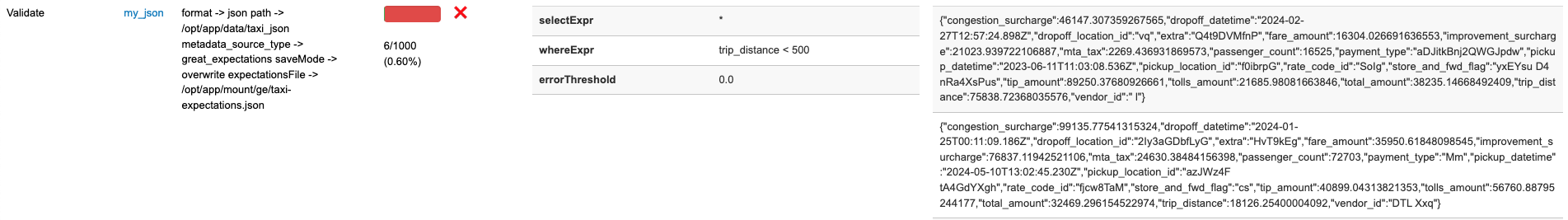

Let's test it out by running it again.

Check out the full example under GreatExpectationsPlanRun in the example repo.
