Creating a data generator for RabbitMQ. You will build a Docker image that will be able to populate data in RabbitMQ for the queues/topics you configure.

Requirements

  • 10 minutes
  • Git
  • Gradle
  • Docker

Get Started

First, we will clone the data-caterer repo which will already have the base project setup required.

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

git clone git@github.com:data-catering/data-caterer.git
cd data-caterer/example

Run Data Caterer UI via the 'Quick Start' found here.

If you already have a RabbitMQ instance running, you can skip to this step.

RabbitMQ Setup

Next, let's make sure you have an instance of RabbitMQ up and running in your local environment. This will make it easy for us to iterate and check our changes.

cd docker
docker-compose up -d rabbitmq

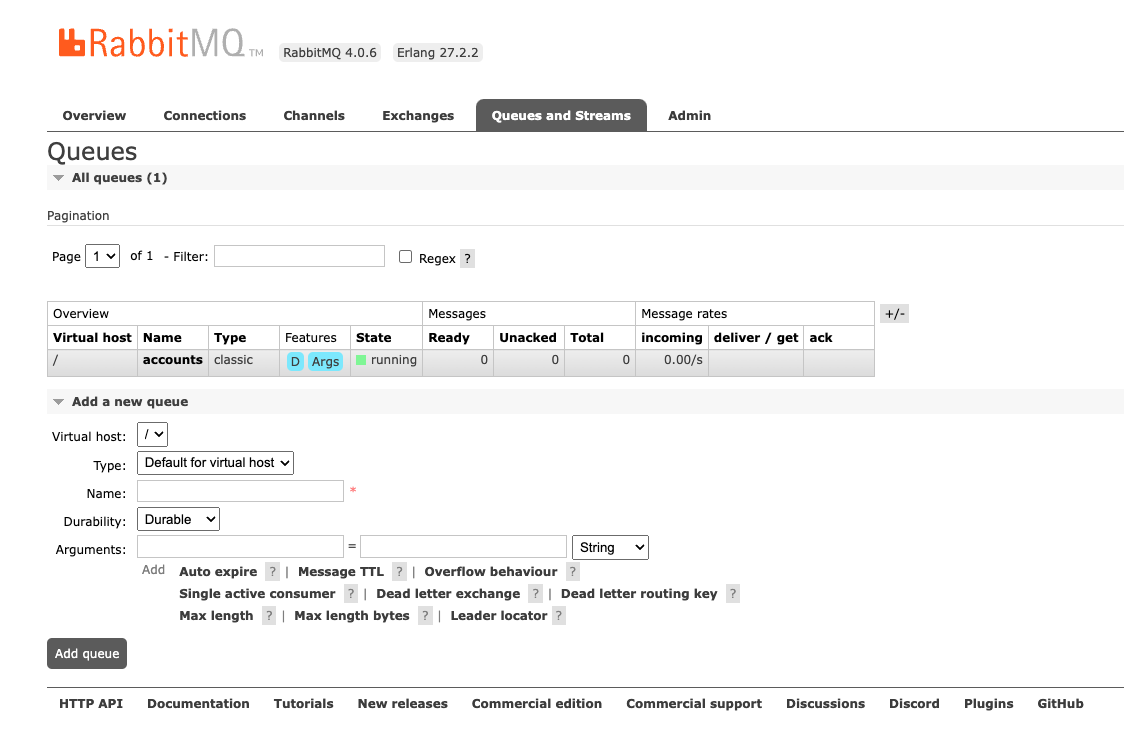

Open up localhost:15672/#/queues and login with guest:guest. Create a new queue with name accounts.

RabbitMQ dashboard

Plan Setup

Create a file depending on which interface you want to use.

  • Java: src/main/java/io/github/datacatering/plan/MyAdvancedRabbitMQJavaPlan.java
  • Scala: src/main/scala/io/github/datacatering/plan/MyAdvancedRabbitMQPlan.scala
  • YAML: docker/data/custom/plan/my-rabbitmq.yaml
import io.github.datacatering.datacaterer.java.api.PlanRun;

public class MyAdvancedRabbitMQJavaPlan extends PlanRun {
}

import io.github.datacatering.datacaterer.api.PlanRun

class MyAdvancedRabbitMQPlan extends PlanRun {
}

In docker/data/custom/plan/my-rabbitmq.yaml:

name: "my_rabbitmq_plan"
description: "Create account data in RabbitMQ"
tasks:
  - name: "rabbitmq_task"
    dataSourceName: "my_rabbitmq"

  1. Click on Connection towards the top of the screen
  2. For connection name, set to my_rabbitmq
  3. Click on Select data source type.. and select RabbitMQ
  4. Set URL as ampq://host.docker.internal:5672
    1. Optionally, we could set the JNDI destination (queue or topic) but we would have to create a new connection for each queue or topic
  5. Click on Create
  6. You should see your connection my_rabbitmq show under Existing connections
  7. Click on Home towards the top of the screen
  8. Set plan name to my_rabbitmq_plan
  9. Set task name to rabbitmq_task
  10. Click on Select data source.. and select my_rabbitmq

This class defines where we need to define all of our configurations for generating data. There are helper variables and methods defined to make it simple and easy to use.

Connection Configuration

Within our class, we can start by defining the connection properties to connect to RabbitMQ.

var accountTask = rabbitmq(
    "my_rabbitmq",                        //name
    "ampq://host.docker.internal:5672", //url
    Map.of()                            //optional additional connection options
);

Additional connection options can be found here.

val accountTask = rabbitmq(
    "my_rabbitmq",                        //name
    "ampq://host.docker.internal:5672", //url
    Map()                               //optional additional connection options
)

Additional connection options can be found here.

In docker/data/custom/application.conf:

jms {
    rabbitmq {
        initialContextFactory = "com.rabbitmqsystems.jndi.SolJNDIInitialContextFactory"
        initialContextFactory = ${?SOLACE_INITIAL_CONTEXT_FACTORY}
        connectionFactory = "/jms/cf/default"
        connectionFactory = ${?SOLACE_CONNECTION_FACTORY}
        url = "smf://rabbitmqserver:55555"
        url = ${?SOLACE_URL}
        user = "admin"
        user = ${?SOLACE_USER}
        password = "admin"
        password = ${?SOLACE_PASSWORD}
        vpnName = "default"
        vpnName = ${?SOLACE_VPN}
    }
}

  1. We have already created the connection details in this step

Schema

Let's create a task for inserting data into the rest_test_queue or rest_test_topic that is already created for us from this step.

Trimming the connection details to work with the docker-compose RabbitMQ, we have a base RabbitMQ connection to define the JNDI destination we will publish to. Let's define each field along with their corresponding data type. You will notice that the text fields do not have a data type defined. This is because the default data type is StringType.

{
    var rabbitmqTask = rabbitmq("my_rabbitmq", "ampq://host.docker.internal:5672")
            .destination("accounts")
            .fields(
                    //field().name("partition").type(IntegerType.instance()),   can define JMS priority here
                    field().messageHeaders(   //set message properties via headers field
                            field().messageHeader("account-id", "body.account_id"),
                            field().messageHeader("updated", "body.details.updated_by-time")
                    )
            ).fields(
                    field().messageBody(
                            field().name("account_id").regex("ACC[0-9]{8}"),
                            field().name("year").type(IntegerType.instance()).min(2021).max(2023),
                            field().name("amount").type(DoubleType.instance()),
                            field().name("details")
                                    .fields(
                                            field().name("name").expression("#{Name.name}"),
                                            field().name("first_txn_date").type(DateType.instance()).sql("ELEMENT_AT(SORT_ARRAY(body.transactions.txn_date), 1)"),
                                            field().name("updated_by")
                                                    .fields(
                                                            field().name("user"),
                                                            field().name("time").type(TimestampType.instance())
                                                    )
                                    ),
                            field().name("transactions").type(ArrayType.instance())
                                    .fields(
                                            field().name("txn_date").type(DateType.instance()).min(Date.valueOf("2021-01-01")).max("2021-12-31"),
                                            field().name("amount").type(DoubleType.instance())
                                    )
                    )
            )
            .count(count().records(10));
}

val rabbitmqTask = rabbitmq("my_rabbitmq", "ampq://host.docker.internal:5672")
  .destination("accounts")
  .fields(
    //field.name("partition").type(IntegerType),  can define JMS priority here
    field.messageHeaders(                         //set message properties via headers field
      field.messageHeader("account-id", "body.account_id"),
      field.messageHeader("updated", "body.details.updated_by.time"),
    )
  )
  .fields(
    field.messageBody(
      field.name("account_id").regex("ACC[0-9]{8}"),
      field.name("year").`type`(IntegerType).min(2021).max(2023),
      field.name("account_status").oneOf("open", "closed", "suspended", "pending"),
      field.name("amount").`type`(DoubleType),
      field.name("details").`type`(StructType)
        .fields(
          field.name("name").expression("#{Name.name}"),
          field.name("first_txn_date").`type`(DateType).sql("ELEMENT_AT(SORT_ARRAY(body.transactions.txn_date), 1)"),
          field.name("updated_by").`type`(StructType)
            .fields(
              field.name("user"),
              field.name("time").`type`(TimestampType),
            ),
        ),
      field.name("transactions").`type`(ArrayType)
        .fields(
          field.name("txn_date").`type`(DateType).min(Date.valueOf("2021-01-01")).max("2021-12-31"),
          field.name("amount").`type`(DoubleType),
        )
    )
  )
  .count(count.records(10))

In docker/data/custom/task/rabbitmq/rabbitmq-task.yaml:

name: "rabbitmq_task"
steps:
  - name: "rabbitmq_account"
    options:
      destinationName: "accounts"
    fields:
      - name: "messageBody"
        fields:
          - name: "account_id"
          - name: "year"
            type: "int"
            options:
              min: "2021"
              max: "2022"
          - name: "amount"
            type: "double"
            options:
              min: "10.0"
              max: "100.0"
          - name: "details"
            fields:
              - name: "name"
              - name: "first_txn_date"
                type: "date"
                options:
                  sql: "ELEMENT_AT(SORT_ARRAY(body.transactions.txn_date), 1)"
              - name: "updated_by"
                fields:
                  - name: "user"
                  - name: "time"
                    type: "timestamp"
          - name: "transactions"
            type: "array"
            fields:
              - name: "txn_date"
                type: "date"
              - name: "amount"
                type: "double"
      - name: "messageHeaders"
        fields:
          - name: "account-id"
            options:
              sql: "body.account_id"
          - name: "updated"
            options:
              sql: "body.details.update_by.time"

  1. Click on Generation and tick the Manual checkbox
  2. Click on + Field
    1. Add name as key
    2. Click on Select data type and select string
    3. Click + next to data type and select Sql. Then enter body.account_id
    4. Click on + Field and add name as messageBody
    5. Click on Select data type and select struct
    6. Click on + Field under messageBody and add name as account_id
    7. Add additional fields under messageBody with your own metadata
    8. Click on + Field and add name as messageHeaders
    9. Click on Select data type and select struct
    10. Click on + Field under messageHeaders and add name as account_id
    11. Add additional fields under messageHeaders with your own metadata

Fields

The schema defined for RabbitMQ has a format that needs to be followed as noted above. Specifically, the required fields are: - messageBody

Whilst, the other fields are optional:

  • partition - refers to JMS priority of the message
  • messageHeaders - refers to JMS message properties
Message Headers

If your messages contain headers, you can follow the details below on generating header values. These can be based off values contained within you message body or could be static values, just like any other generated field. The main restriction imposed here is that the key of the message header is static and the value has to be a valid SQL expression.

field().messageHeaders(
        field().messageHeader("account-id", "body.account_id"),
        field().messageHeader("updated", "body.details.updated_by-time")
)

field.messageHeaders(
  field.messageHeader("account-id", "body.account_id"),
  field.messageHeader("updated", "body.details.updated_by.time"),
)

In docker/data/custom/task/rabbitmq/rabbitmq-task.yaml:

name: "rabbitmq_task"
steps:
  - name: "rabbitmq_account"
    options:
      destinationName: "accounts"
    fields:
      - name: "messageHeaders"
        fields:
          - name: "account-id"
            options:
              sql: "body.account_id"
          - name: "updated"
            options:
              sql: "body.details.update_by.time"

  1. Click on + Field and add name as messageHeaders
  2. Click on Select data type and select struct
  3. Click on + Field under messageHeaders and add name as account_id
  4. Add additional fields under messageHeaders with your own metadata
transactions

transactions is an array that contains an inner structure of txn_date and amount. The size of the array generated can be controlled via arrayMinLength and arrayMaxLength.

field().name("transactions").type(ArrayType.instance())
        .fields(
                field().name("txn_date").type(DateType.instance()).min(Date.valueOf("2021-01-01")).max("2021-12-31"),
                field().name("amount").type(DoubleType.instance())
        )

field.name("transactions").`type`(ArrayType)
  .fields(
    field.name("txn_date").`type`(DateType).min(Date.valueOf("2021-01-01")).max("2021-12-31"),
    field.name("amount").`type`(DoubleType),
  )

In docker/data/custom/task/rabbitmq/rabbitmq-task.yaml:

name: "rabbitmq_task"
steps:
  - name: "rabbitmq_account"
    options:
      destinationName: "accounts"
    fields:
      - name: "messageBody"
        fields:
          - name: "transactions"
            type: "array"
            fields:
              - name: "txn_date"
                type: "date"
              - name: "amount"
                type: "double"

Warning

Inner field definition for array type is currently not supported from the UI. Will be added in the near future!

details

details is another example of a nested schema structure where it also has a nested structure itself in updated_by. One thing to note here is the first_txn_date field has a reference to the content.transactions array where it will sort the array by txn_date and get the first element.

field().name("details")
        .fields(
                field().name("name").expression("#{Name.name}"),
                field().name("first_txn_date").type(DateType.instance()).sql("ELEMENT_AT(SORT_ARRAY(content.transactions.txn_date), 1)"),
                field().name("updated_by")
                        .fields(
                                field().name("user"),
                                field().name("time").type(TimestampType.instance())
                        )
        )

field.name("details")
  .fields(
    field.name("name").expression("#{Name.name}"),
    field.name("first_txn_date").`type`(DateType).sql("ELEMENT_AT(SORT_ARRAY(content.transactions.txn_date), 1)"),
    field.name("updated_by")
      .fields(
        field.name("user"),
        field.name("time").`type`(TimestampType),
      ),
  )

In docker/data/custom/task/rabbitmq/rabbitmq-task.yaml:

name: "rabbitmq_task"
steps:
  - name: "rabbitmq_account"
    options:
      destinationName: "accounts"
    fields:
      - name: "messageBody"
        fields:
          - name: "details"
            fields:
              - name: "name"
              - name: "first_txn_date"
                type: "date"
                options:
                  sql: "ELEMENT_AT(SORT_ARRAY(body.transactions.txn_date), 1)"
              - name: "updated_by"
                fields:
                  - name: "user"
                  - name: "time"
                    type: "timestamp"

  1. Click on + Field and add name as messageBody
  2. Click on Select data type and select struct
  3. Click on + Field under messageBody and add name as details
  4. Add additional fields under details with your own metadata

Additional Configurations

At the end of data generation, a report gets generated that summarises the actions it performed. We can control the output folder of that report via configurations.

var config = configuration()
        .generatedReportsFolderPath("/opt/app/data/report");

val config = configuration
  .generatedReportsFolderPath("/opt/app/data/report")

In docker/data/custom/application.conf:

folders {
  generatedReportsFolderPath = "/opt/app/data/report"
}

  1. Click on Advanced Configuration towards the bottom of the screen
  2. Click on Folder and enter /tmp/data-caterer/report for Generated Reports Folder Path

Execute

To tell Data Caterer that we want to run with the configurations along with the rabbitmqTask, we have to call execute.

Run

Now we can run via the script ./run.sh that is in the top level directory of the data-caterer/example folder to run the class we just created.

./run.sh AdvancedRabbitMQJavaPlanRun

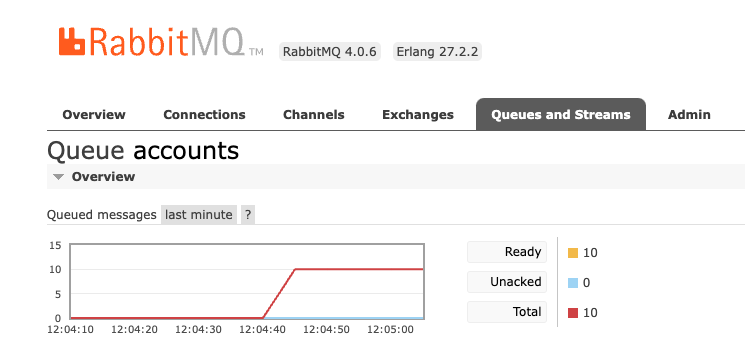

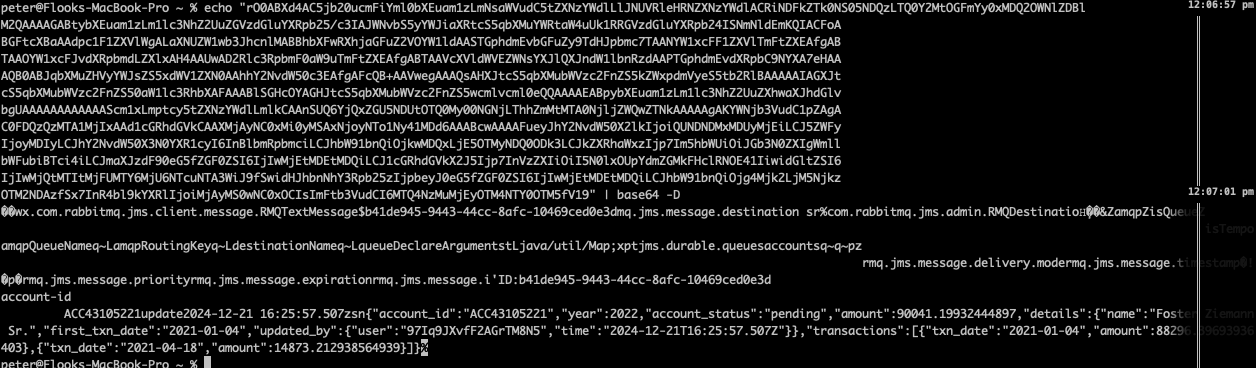

#after completing, check http://localhost:15672/#/queues/%2F/accounts from browser

./run.sh AdvancedRabbitMQPlanRun
#after completing, check http://localhost:15672/#/queues/%2F/accounts from browser

./run.sh my-rabbitmq.yaml
#after completing, check http://localhost:15672/#/queues/%2F/accounts from browser
  1. Click the button Execute at the top
  2. Progress updates will show in the bottom right corner
  3. Click on History at the top
  4. Check for your plan name and see the result summary
  5. Click on Report on the right side to see more details of what was executed

Your output should look like this.

RabbitMQ messages queued

You can check the message payload by clicking on Get Message(s). Once you copy the payload, you can run a command like: echo "<payload>" | base64 -D to see the actual message.

RabbitMQ message payload

Also check the HTML report, found at docker/sample/report/index.html, that gets generated to get an overview of what was executed. Or view the sample report found here.
